You've seen the announcement, now it's time for the nitty-gritty details.

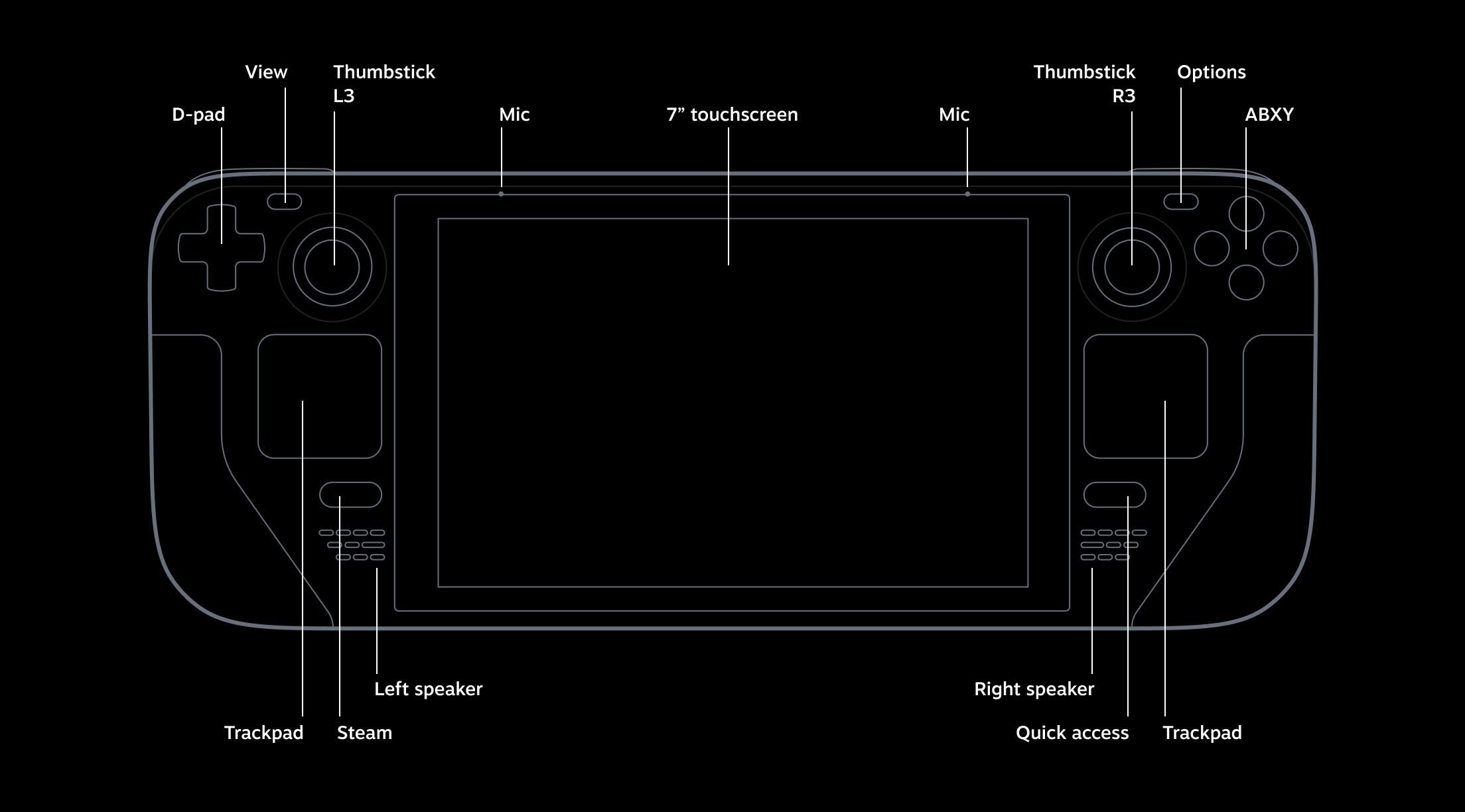

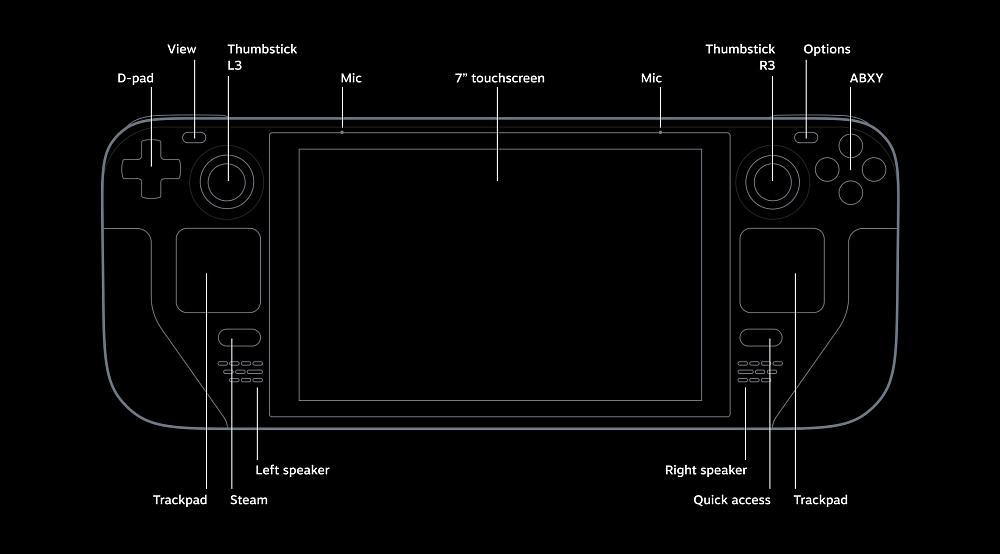

Click image for larger version  Name:	tech-specs_1_english.jpg Views:	455 Size:	115.7 KB ID:	3511942

Valve just announced the Steam Deck, a handheld, fully-featured portable gaming machine. It's a powerful little device that starts at $399 (USD), but we didn't really share just how powerful this hardware is.

Let's take a little look at the Steam Deck's technical specs, its design, the hardware, and the software powering it all.

Compute
Processor:
  • AMD APU
  • CPU: Zen 2 4c/8t, 2.4-3.5GHz (up to 448 GFlops FP32)
  • GPU: 8 RDNA 2 CUs, 1.0-1.6GHz (up to 1.6 TFlops FP32)
  • APU power: 4-15W
RAM
  • 16 GB LPDDR5 RAM (5500 MT/s quad 32-bit channels)
Storage
  • 64 GB eMMC (PCIe Gen 2 x1)
  • 256 GB NVMe SSD (PCIe Gen 3 x4)
  • 512 GB high-speed NVMe SSD (PCIe Gen 3 x4)
  • All models include high-speed microSD card slot
  • All models use socketed 2230 m.2 modules (not intended for end-user replacement)

Controls and Input
Gamepad controls
  • A B X Y buttons
  • D-pad
  • L & R analog triggers
  • L & R bumpers
  • View & Menu buttons
  • 4 x assignable grip buttons
Thumbsticks
  • 2 x full-size analog sticks with capacitive touch
Haptics
  • HD haptics
Trackpads
  • 2 x 32.5mm square trackpads with haptic feedback
  • 55% better latency compared to Steam Controller
  • Pressure-sensitivity for configurable click strength
Gyro
  • 6-Axis IMU

Display
Resolution
  • 1280 x 800px (16:10 aspect ratio)
Type
  • Optically bonded LCD for enhanced readability
Display size
  • 7" diagonal
Brightness
  • 400 nits typical
Refresh rate
  • 60Hz
Touch enabled
  • Yes
Sensors
  • Ambient light sensor

Connectivity
Bluetooth
  • Bluetooth 5.0 (support for controllers, accessories and audio)
Wi-Fi
  • Dual-band Wi-Fi radio, 2.4GHz and 5GHz, 2 x 2 MIMO, IEEE 802.11a/b/g/n/ac

Audio
Channels
  • Stereo with embedded DSP for an immersive listening experience
Microphones
  • Dual microphone array
Headphone / mic jack
  • 3.5mm stereo headphone / headset jack
Digital
  • Multichannel audio via DisplayPort over USB-C, standard USB-C, or Bluetooth 5.0

Power
Input
  • 45W USB Type-C PD3.0 power supply
Battery
  • 40Whr battery. 2 - 8 hours of gameplay

Expansion
microSD
  • UHS-I supports SD, SDXC and SDHC
External connectivity for controllers & displays
  • USB-C with DisplayPort 1.4 Alt-mode support; up to 8K @60Hz or 4K @120Hz, USB 3.2 Gen 2

Size and Weight
Size
  • 298mm x 117mm x 49mm
Weight
  • Approx. 669 grams

Software
Operating System
  • SteamOS 3.0 (Arch-based)
Desktop
  • KDE Plasma

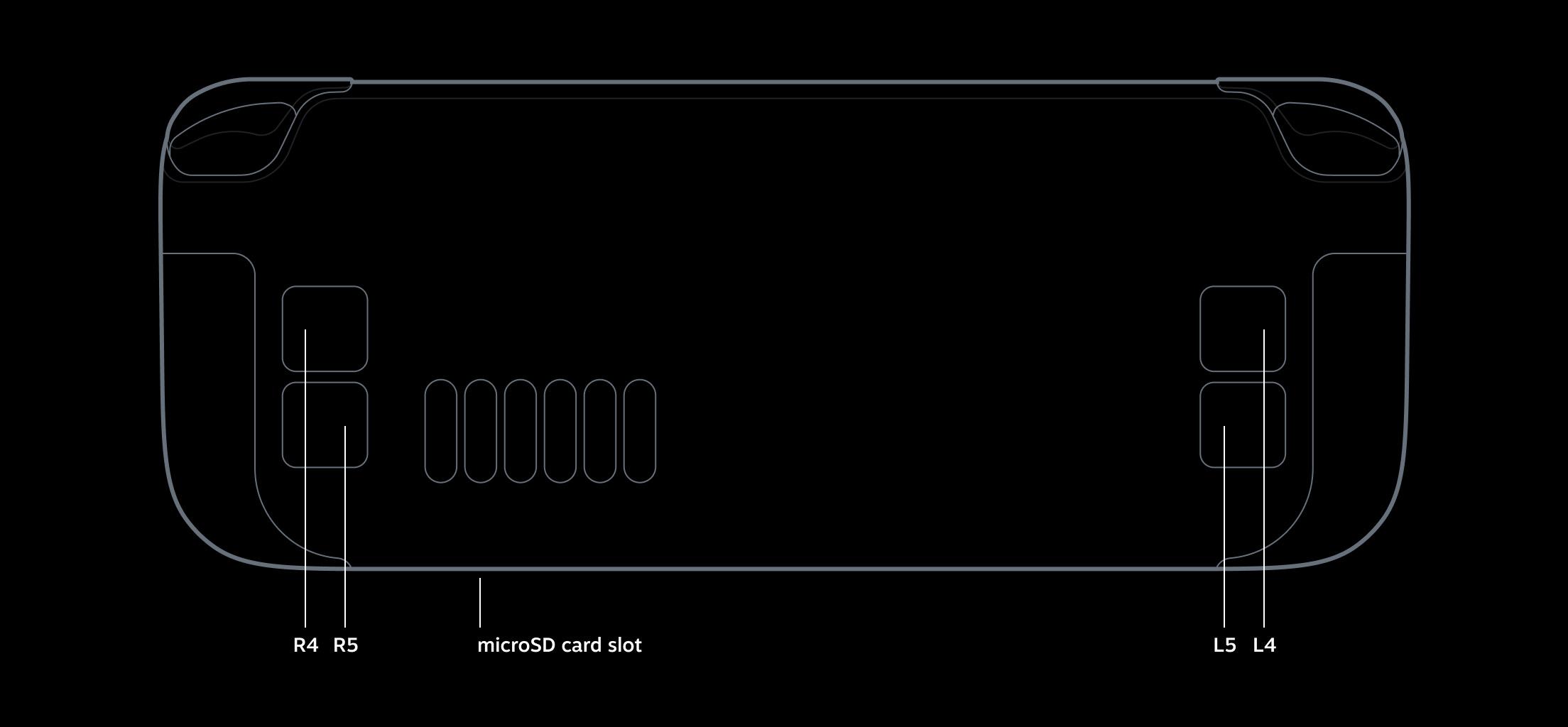

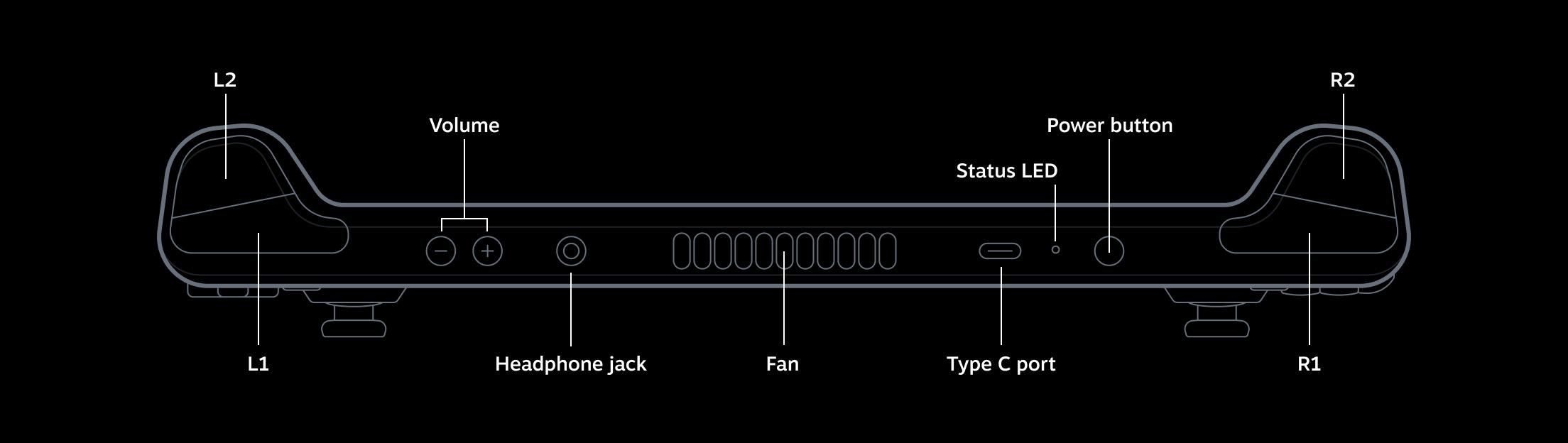

Click image for larger version  Name:	tech-specs_2_english.jpg Views:	40 Size:	66.9 KB ID:	3511943Click image for larger version  Name:	tech-specs_3_english.jpg Views:	57 Size:	72.7 KB ID:	3511944
Valve notes that things like the software are up to the user. If you don't want to use SteamOS, you don't have to. You are free to install a copy of Windows to the Steam Deck if you really want to. Valve also made sure to note that the Steam Deck will include a microSD card slot for expandable storage, which will be great for those that opt to pick up the smallest capacity model at launch.

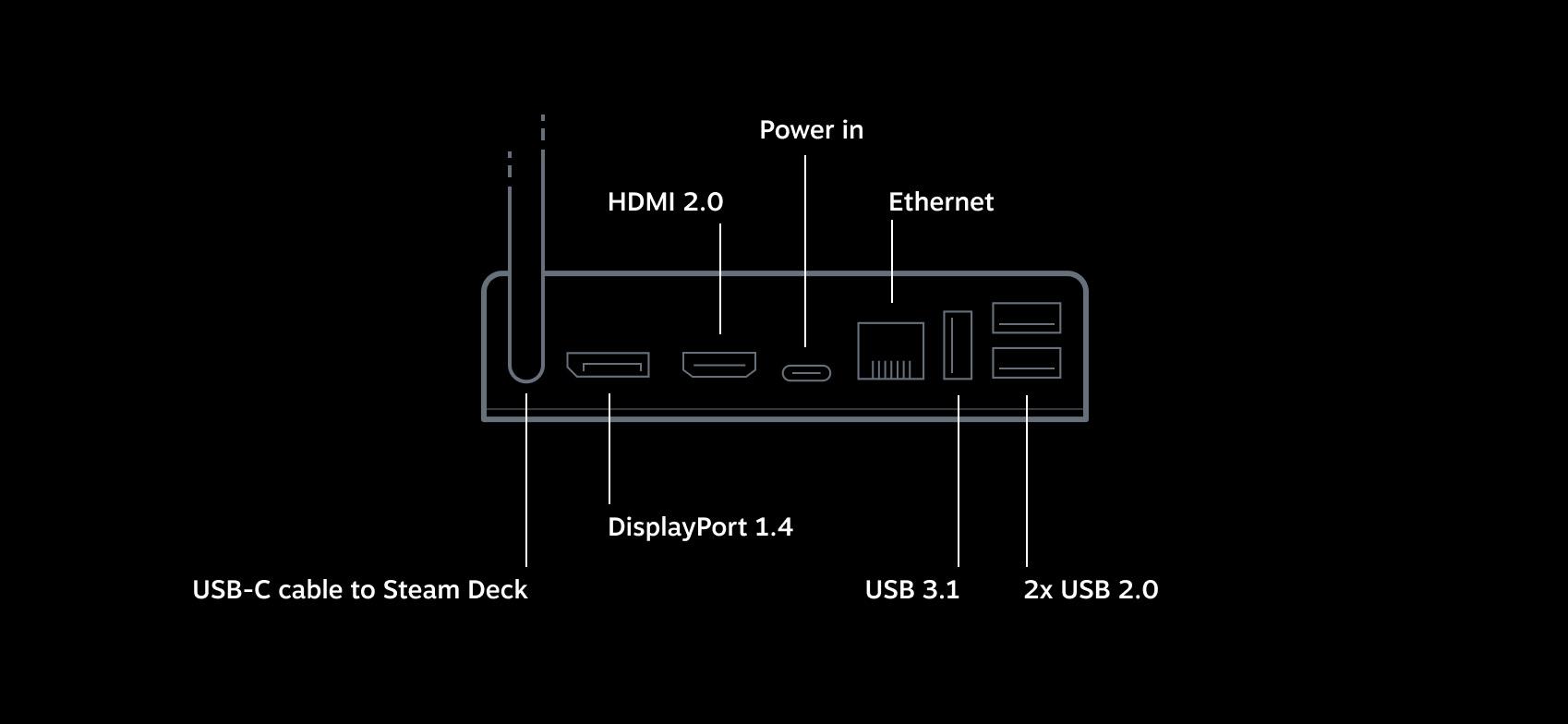

Valve also briefly touched upon the Steam Deck's official dock. This "official dock" as it's simply called, will be sold separately. Valve hopes to share more details about the dock soon. Until then, there is a handy diagram of the dock to check out along with some technical specs (that are subject to change).

Expansion
Peripherals
  • 1 x USB-A 3.1 Port
  • 2 x USB-A 2.0 Ports
Networking
  • Ethernet
External displays
  • DisplayPort 1.4
  • HDMI 2.0

Power
Input
  • USB-C Power Delivery passthrough input
Deck connection
  • 6" USB-C captive cable with low profile 90° connector

Size and Weight
Size
  • 117mm x 29mm x 50.5mm
Weight
  • Approx. 120 grams

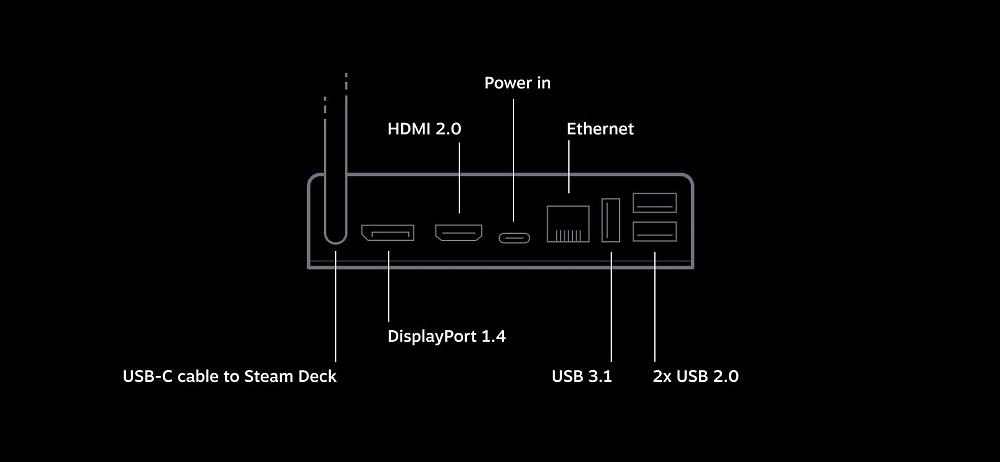

Click image for larger version  Name:	Steam Deck Dock.jpg Views:	62 Size:	47.3 KB ID:	3511945

Valve also touts the connectivity of the Steam Deck. You can connect Bluetooth-capable peripherals to the Deck. This obviously includes hardware such as a Bluetooth mouse, keyboard, headphones, or controller. You can also use the included USB-C connector on the Steam Deck itself to connect another device.

Want to plug the Deck into your PC? You can. The USB-C port can carry all of that data. Optionally, you can use the optional Steam Deck dock with its included ports to make that a bit easier to manage.

On the operating system side of things, Steam Deck comes with SteamOS 3.0, the latest version of Valve's Linux-based operating system. The Steam experience on Steam Deck is akin to what you would get on a normal desktop experience. You still have all of the Steam features you've come to know and maybe even love. There is still Steam Chat, Remote Play, notifications, the Steam Store, cloud saves, access to the community, and everything else.

If you're looking for a more hands-on experience, of which we here at TGN have none, you should check out IGN's latest video. They were able to go hands-on with an early build of the Steam Deck. I've included their video below for easy viewing.

Steam Deck goes on sale starting July 16, 2021. You will need to put down $5 for a reservation. Orders will begin shipping in December 2021.
